Straight Wall Fiberglass Basins

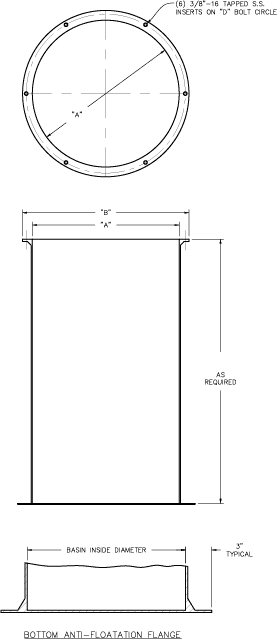

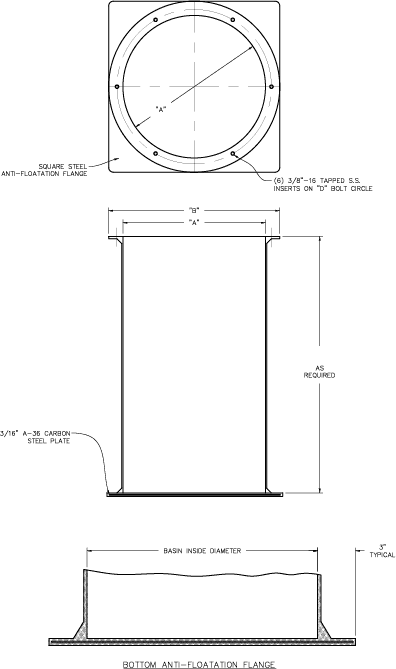

A straight wall fiberglass basin is often specified when dealing with larger and deeper applications. This basin is standardly supplied with a fiberglass anti-flotation flange and can be supplied with a square steel anti-flotation flange as well. Filament winding is a process where the majority of “glass” is positioned in the horizontal axis to give the basin strength around the circumference. To ensure the glass that is placed in the longitudinal axis is adequately bound together, we apply a “stitched uni-directional” glass ninety degrees from the “wound” glass. This application ensures the basin will not split or separate along a line of “wound” glass. This will also guarantee consistent strength throughout the basin. These basins are manufactured in diameters of; 24”, 30”, 36”, 42”, 48”, 54”, 60”, and 72” and in depths of 24″ to 360″. See pages 31 thru 38 in the Product Catalog for basins with fiberglass anti-flotation flanges and square steel anti-flotation flanges.

  • Basin Installation Instructions
    140.11 kbDownload
  • Steele Plastics Limited Warranty
    152.12 kbDownload
  • Steele Plastics Product Catalog
    7.39 mbDownload
  • Buoyancy Calculations for Concrete Ballast
    41.42 kbDownload
